Halogen Free XLPE Flat Ribbon Cable UL4478 #26AWG 10Pins 2.0mm Pitch VW-1

Brand Name : WCH Cable

Model Number : UL4478 AWG26 PH2.0 GRY+RED

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.2105 per meter

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5,000,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 152.5 meters or 305 meters per reel, optional

UL Style : 4478

Gauge : 26AWG

Pitch Distance : 2.0mm

Pin Quantity : 10 Pins

Colour : Grey Color With Red Marking

Conductor Type : Tinned Stranded Copper Wire

Flame Grade : VW-1

Feature : Halogen Free

Contact Now

Halogen Free XLPE Flat Ribbon Cable UL4478 #26AWG 10Pins 2.0mm Pitch VW-1

Halogen Free XLPE Flat Ribbon Cable UL4478 #26AWG 10Pins 2.0mm Pitch VW-1

WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly

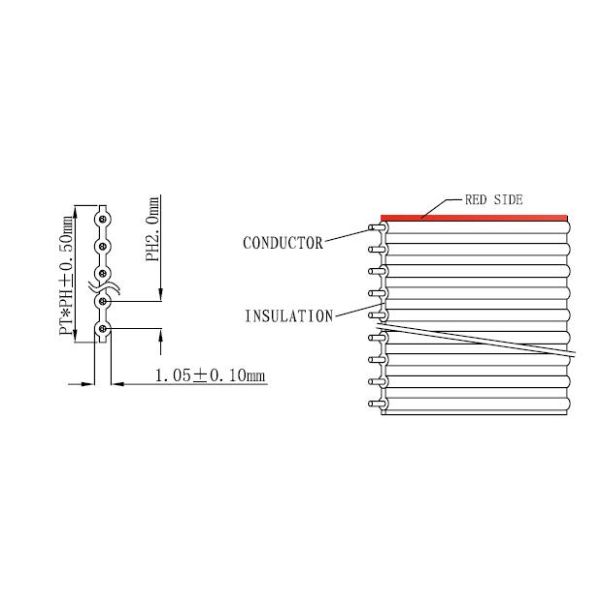

Conductor Specification (AWG) 26
Section Area (mm²) 0.1407
Material 　 Tinned stranded copper
Configuration (mm) TS7/0.16±0.007
Insulation Pitch Distance (mm) 2.0
Ave Thickness (mm) 0.26
Min Thickness (mm) 0.22
Over Diameter (mm) 1.05±0.10
Material 　 XLPE (RoHS)
Colour 　 8002K Grey
Electrical
Capability		 Rated Temperature (℃) 105
Rated Voltage (V) 300
Conductor Resistance (Ω/KM 20℃) 150.0
Insulation Resistance (MΩ/KM 20℃) 10
Flammability UL Fire Resistant 　 VW-1
CSA Fire Resistant 　 FT-1
Approval UL Style Number 　 4478
CSA Standard 　 I / A
Based Standard 　 Lead Free, Halogen Free
Environmental Standard 　 RoHS & Reach Compliant

Tag: UL4478, XLPE crosslinked cable, Irradiated cable


Wholesale Halogen Free XLPE Flat Ribbon Cable UL4478 #26AWG 10Pins 2.0mm Pitch VW-1 from china suppliers
